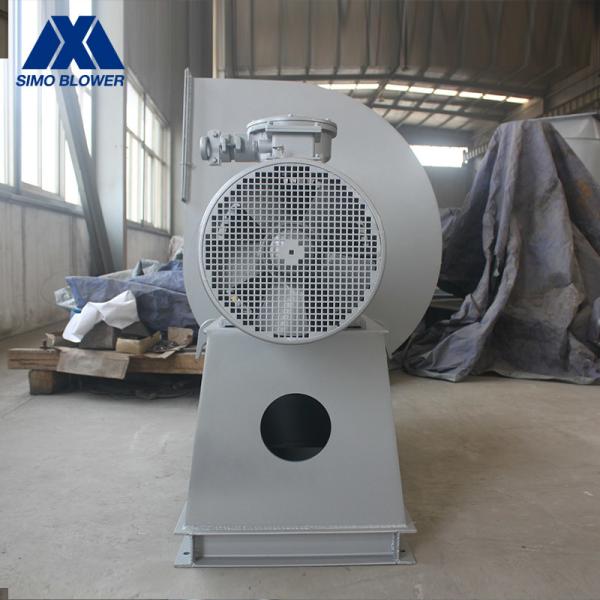

Exhaust Fan For Industrial Machinery High Performance Air Blower
Introduction
Ths medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
Exhaust Fan For Industrial Machinery High Performance Air Blower
has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
| PRODUCT PARAMETERS |
| centrifugal fan Application | Temperature | Normal temperature air, Hot air |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials |
| centrifugal fan Performance | Impeller diameter | 400~3500 | mm |
| Speed of mainshaft | ≤3000 | rpm |
| Pressure range | 3215~27349 | Pa |
| Flow range | 1049~330301 | m3/h |
| centrifugal fan Structure | Blade | Backward |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. |
| Drivetrain | Coupling | Can assign |
| Lubrication | Oil bath lubrication |
| Bearing cooling | Air cooling, Water cooling, Oil cooling |
| centrifugal fan System
configuration | Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… | Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... |
| Casing, Air inlet cone, Air inlet damper | Q235, Q345, SS304, SS316, HG785, DB685... |
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... |
| Bearing | FAG, SKF, NSK, ZWZ… |
| centrifugal fan Optional
components | System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc. |
Advantages and Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
7. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.
For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
8. Large parts and components are disassembled and transported, so that most parts can be loaded into containers for transportation, saving you shipping costs.
9. Each component has an installation number. Under the guidance of the installation manual, the system assembly can be completed smoothly.
10. Provide on-site arrangement and guidance services.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
