Alloy Steel 2982 - 3456 Pa Material Handling Blower Single Suction Wear Resistant

  • 1
  • 2
  • 3

Brand Name : SIMO

Model Number : SIMO Blower 7-05

Certification : CE, ISO9001:2008,TUV

Place of Origin : Henan China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Payment Term Is Negotiable

Supply Ability : 500 Sets Per Month

Delivery Time : 15-35 Days

Packaging Details : Export Wooden Case Packing, Steel pallet Packing

Material : Carbon Steel/Alloy Steel/Stainless Steel

Drivetrain : Direct/Coupling Driven/V-belt Driven

After-sales Service Provided : Field installation, commissioning and training

Mounting : Free Standing

Bearing : SKF/FAG/By your demand

Color : Customer's Requirement

Contact Now

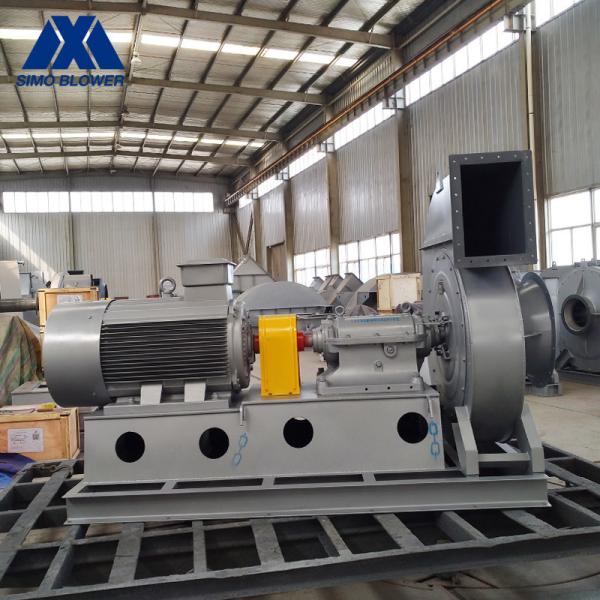

Alloy Steel Single Suction Wear Resistant Material Handling Blower

Introduction

1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.

2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.

3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.

4.Fan drive mode is V-belt drive, coupling drive, double support type.

5.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.

Technical data

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
7-05 5D 3030 2982 ~ 3456 4486 ~ 8971 11 ~ 15
5.6D 2360 2623～2264 4909～9817 11
7.1D 1830 ~ 2450 2188 ~ 3862 7757～20771 15 ~ 30
8D 1910 3517～3034 11582～23164 30
9D 1570 3002～2591 13555～27111 30
10D 1470 ~ 1650 2806 ~ 4109 17410 ～ 36478 45 ~ 55

FAQ

1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A : A:5-35 days.

3,Q : What’s your payment terms?

A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?

A: We have our own factory, our type is factory +trade.
