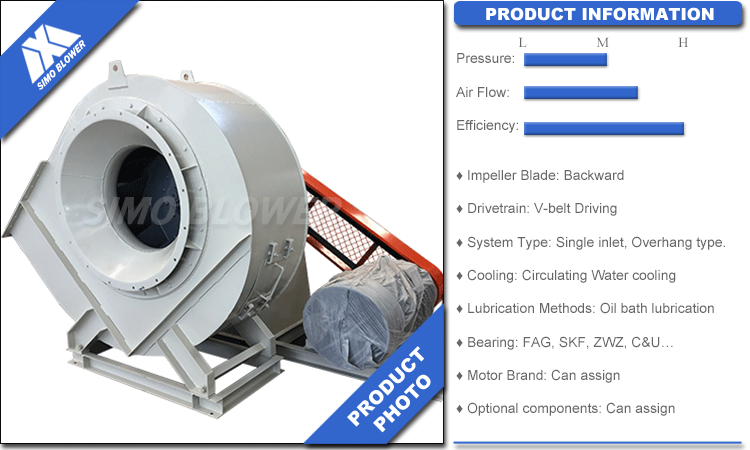

High Efficiency Belt Driven 75kw Kiln Blower For Air Draughting Of Steam Boilers

Product Categories

Xinxiang SIMO Blower Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: High Efficiency Belt Driven 75kw Kiln Blower For Air Draughting Of Steam Boilers
Brand: SIMO
Price: 300 USD

Brand Name : SIMO

Model Number : 4-14

Certification : ISO 9001:2008

Place of Origin : china

MOQ : 1

Price : 300

Supply Ability : 20

Total Pressure : 553~7218Pa

Medium Temperature : 80℃

Driving Mode : Coupling

Spindle Speed : 480~1450

Application : air draughting of steam boilers

Volume : High air volume

Efficiency : High efficiency

Feature : Resistant to wear

Design : Long-life design

Blade : Backward blades

Contact Now

Applications for belt driven kiln fan 75 kw

♦ Industrial boiler blowing air, Industrial boiler inducing air, Industrial boiler waste gas dust collecting.

Performance

Application	Temperature	Normal temperature Air
	Temperature	Hot Air
	Air composition	Clean air
		Dusty air
		Corrosive gas
		Combustible gas
		Powder materials
		Light particle materials
Performance	Impeller diameter	800~2950	mm
	Speed of mainshaft	730~1450	rpm
	Pressure range	553~7218	Pa
	Flow range	5229~48000	m3/h
Structure	Blade	Backward
	Impeller Support	SWSI (Single Width, Single Inlet), Impeller overhung.
	Drivetrain	Coupling drivetrain	Can assign
	Lubrication	Oil bath lubrication	Can assign
	Bearing cooling	Air cooling or Circulating Water cooling
System	Motor	SIEMENS, ABB, SIMO, LA…	Can assign
configuration	Impeller	Carbon steel
	Impeller cone (Air Inlet)	Carbon steel
	Case	Carbon steel
	Air damper	Carbon steel
	Main shaft	High-strength carbon structural steel
	Bearing	FAG, SKF, ZWZ, C&U…
	Bearing housing	Cast iron
	Drivetrain	Coupling	Can assign
	Foundation bolt
Optional	System base frame, Protective screening,
components	Silencer, Inlet & Outlet pipeline compensator,
	Inlet & Outlet flange, Damper, Electric actuator,
	Shock isolator, Diaphragm coupling, Fluid coupling,
	Motor rain cover, Temperature sensor, Vibrating sensor,
	Soft starter, Inverter, Special Electrical Motor,
	System monitoring Instrument,
	Lube system, Overhead lube tank.
